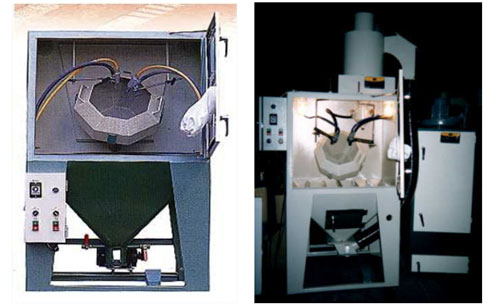

Standard Blast Machine



CS-900TBS



CS-900TB　　　　　　　　　　　　CS-900TBS
CS-900TB CS-900TBS
BLAST SPACE
 900W*750D*750H (m/m) 900W*750D*750H (m/m)
BLAST GUN
 TWIN-GUN TWIN-GUN
DUST COLLECTOR
 1/2HP 220V 3φ 1HP 220V 3φ/ 380V 3φ
COMPRESSOR 15HP 15HP
BASKET SIZE
 1 PROVIDED 450*360 (m/m) 1 PROVIDED 450*360 (m/m)

Features:
　　　　 1. Suitable for sand blasting small parts that are allowed to be collided with 　　　　　　each other.
　　　　 2. Equipped with a timer to control the operation time.
　　　　 3. Easy to load and unload the workpieces.
　　　　 4. The 450mm basket (front door model) is to be lifted manually from the 　　　　　　cabinet for loading and unloading.
　　　　 5. The 600mm stationary basket (side door model) is installed on the side door 　　　　　of the cabinet
　　　　 6. Working space: 900W*750D*750H (m/m)
　　　　 7. A simple to operate, powerful and economical double-action system of blast 　　　　　and tumble for batch processing.

Applications:
　　　　　 Automatic sand blasting large quantity of small parts,small tools, forgings of 　　　　　all type auto electrical parts, starters, deburring brass nozzles, barrel locks, 　　　　　　valve components, and many other types of precision castings, such as 　　　　　　　screws,sockets, bakelite, Acrylic or plastic parts deburring brass Nozzles.
